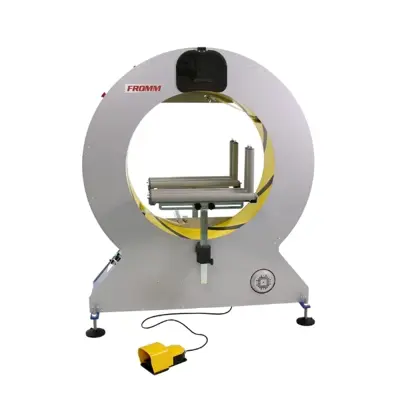

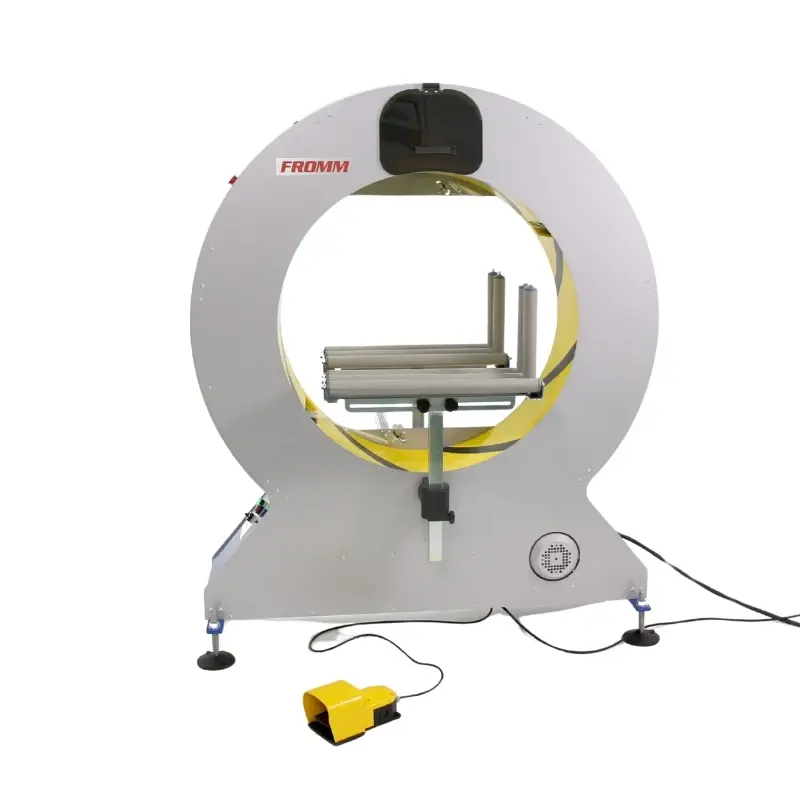

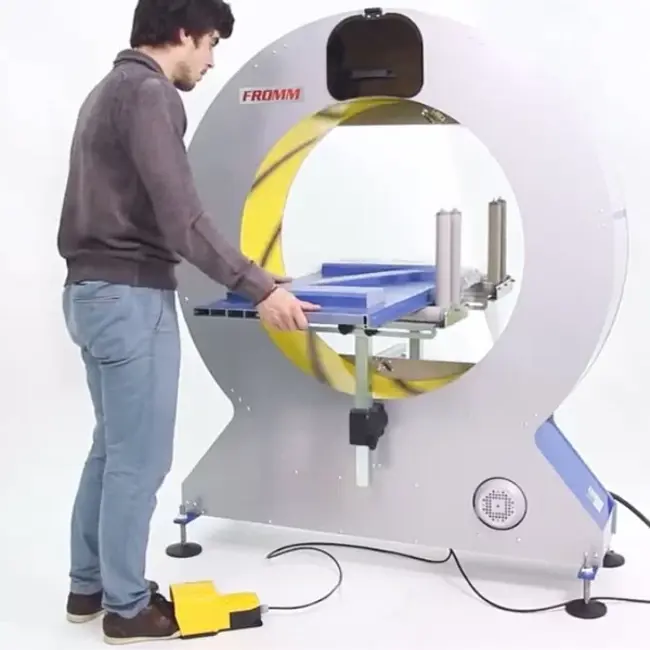

FV300-90 Semi Automatic Orbital Wrapping Machine

Ideal for wrapping long products such as pipes, tubes or rods

Dimensions

Min. 200x200 mm (WxH);__ Max. 890x640 mm (WxH)

Purchase Options

Buy or rent

Two Year Warranty
Two Year Warranty
Simulation Testing
Simulation Testing
5 Star Rated
5 Star Rated
Environmentally Friendly
Environmentally Friendly

Features

  • Double reel film dispensers
  • Adjustable speed up to 90 RPM
  • Mechanical film brake
  • Manual start by foot switch



Options

  • Infeed and outfeed conveyors
  • Top pressers to stabilise load
  • Automatic film clamp and cut
  • Bridge for short products
  • Package guide rollers
  • Safety system

Benefits

  • Wrap up to 1.8x faster with double reel film dispensers
  • Easy operation
  • Foot pedal start allows product to still be held in both hands
  • Fast roll changes
  • Low maintenance
  • Range of additional options
  • FROMM 2 year warranty
Machine Specifications
Ring Diameter

900 mm

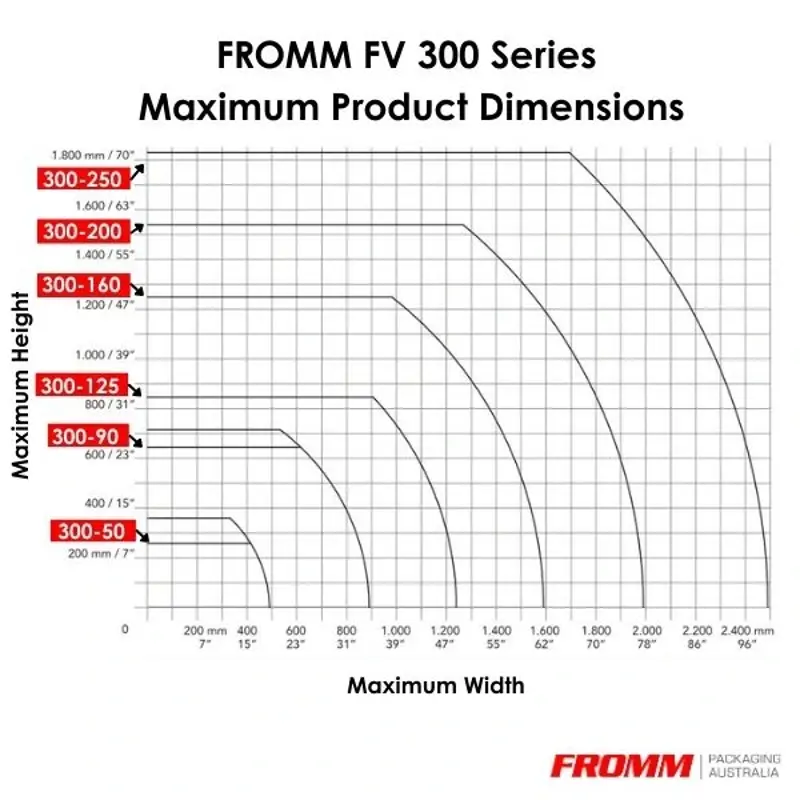

Max Product Size

W: 890 mm, H: 640 mm, L: Unlimited

Min Product Size

W: 200 mm, H: 200 mm

Max Rotating Speed

90 RPM

Max Product Weight

Dependent on conveyors

Film Width

100 mm / 166 mm

Power

240 Volt

Air Supply Needed

6 Bars

Machine Options
Conveyors

Infeed and outfeed

Automatic Film Clamp and Cut

Available

Top Pressers

To stabilise load in wrapping cycle

Bridge For Short Products

Available

Safety System

Available

Plastic stretch wrap is an integral material for safe and secure pallet load containment. FROMM’s high quality, tear resistant stretch wrap is capable of significant stretch without compromising product integrity for suitable products.
Bundled with our wrapping machines, our customers use less film, resulting in reduced packaging and waste disposal costs. Enhanced film stretchability means less material is required overall, and precise product usage enabled by our wrapping machines minimises unnecessary waste.

Reduce: Reviewing the film thickness can significantly reduce the amount of plastic needed, providing the same performance as thicker films.

Reuse: While most stretch wrap is designed for single use, we encourage reusing leftover wrap for smaller, in-house applications where feasible, helping extend its life before disposal.

Recycle: FROMM Verde stretch films are made with 30% post-consumer recycled (PCR) material and are fully recyclable under the recycling code LLDPE (4). We promote proper recycling practices and work with our customers to ensure that used film enter the recycling stream whenever possible.
