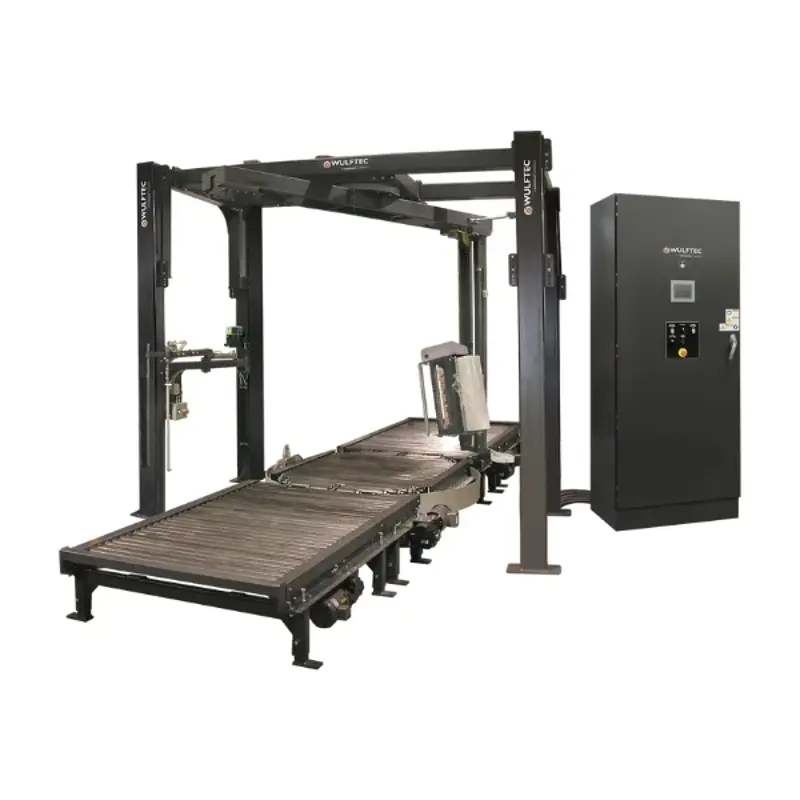

Wulftec WCAT450 Automatic Inline Rotary Arm & Turntable Wrapping Machine
Fastest wrapper on the market for harsh environments
- Rotating arm applies film, whilst turntable rotates in the opposite direction
- Suitable for up to 150 pallets per hour
- Turntable speed up to 15 RPM
- Rotary arm speed up to 30 RPM
- 100% structural steel construction
- View machine specifications & options >>
Weight
2200 kg max
Dimensions
2030 mm wrap height
Two Year Warranty
Simulation Testing
5 Star Rated
Environmentally Friendly
Features
- 2200 kg load weight capacity
- 100% structural steel construction
- Automatic film clamp, cut and wipe system
- 630mm ring gear with pinion drive
- Automated lubrication system
- Allen Bradley controls and touchscreen
- 500mm NO-THREAD film carriage
- 200% powered pre-stretch film delivery
- Turntable speed up to 15 RPM
- Rotary arm speed up to 30 RPM
- Automatic pallet height detection
- Soft start and stop
- Fully adjustable wrap programs
Options
- Conveyors - roller or chain
- Infeed, outfeed and process conveyors
- Safety system category 3 and 4
- Film carriage 750 mm
- Top plate unit
- Top sheet dispenser
- Electronic scales
- Roping system
- Heat seal
- Extended pallet size
- Paint - custom colours & protective paint
Benefits
- Capable of wrapping up to 150 pallets / hour
- Ideal for tall, light or unstable loads
- Extensive range of options
- Easy on screen diagnostic panel
- Engineered for harsh environments including dirty, hot or cold
- Non proprietary spare parts
- Standalone system or fully integrated
Machine Specification
2200 kg
1270 x 1270 x 2030 mm
200 %
Up to 30 RPM
Up to 15 RPM
Up to 45 RPM
Allen Bradley
Up to 150 pallets / hour
500 mm (standard)
415 / 3 / 15
3 CFM @ 80 PSI
Machine Options
Roller or chain
Infeed, outfeed and process conveyor
Category 3 and 4
750 mm
Available
Pallet top pressure unit
Manual or pneumatic
Increased height & width capacity
Available
Custom colours protective paint
Plastic stretch wrap is an integral material for safe and secure pallet load containment. FROMM’s high quality, tear resistant stretch wrap, including our Verde stretch films made from a 30% blend of recycled materials and 70% virgin materials, stretches further than ever— capable of significant stretch without compromising product integrity for suitable products. Bundled with our wrapping machines, our customers use less film, resulting in reduced packaging and waste disposal costs.
For example, our Forza range offers up to 250% stretch, effectively reducing single-use plastics, making it an ideal choice for businesses focused on sustainability. The enhanced stretchability means less material is required overall, and precise product usage enabled by our wrapping machines minimises unnecessary waste.
Reduce: Our Forza 12um film significantly reduces the amount of plastic needed, providing the same performance as thicker films. This helps lower plastic consumption and supports businesses in meeting their sustainability goals.
Reuse: While most stretch wrap is designed for single use, we encourage reusing leftover wrap for smaller, in-house applications where feasible, helping extend its life before disposal.
Recycle: Our Verde stretch films are made with 30% post-consumer recycled (PCR) material and are fully recyclable under the recycling code LLDPE (4). We promote proper recycling practices and work with clients to ensure that used wraps enter the recycling stream whenever possible.
Need the perfect packaging solution? Let's wrap this up!
Share your details below, and our packaging experts
get back with the solution .
